Fast Extraction of Metanephrine and Normetanephrine from Urine

06/10/2013 1 min read

Sponsored By

Share

A new solid phase extraction technology has been developed to speed up sample preparation by eliminating steps in the extraction workflow. This application note describes the extraction of metanephrine and normetanephrine from synthetic urine using this ‘load-wash-elute’ approach with EVOLUTE EXPRESS CX 96-well SPE plates.  Recoveries exceeding 80% and excellent linearity over the range 10-70 ng/mL are achieved.

Plate Configuration: EVOLUTE EXPRESS CX 30 mg plate p/n 601-0030-PX01
Sample Pre-treatment: Dilute synthetic urine sample with water (1:1, v/v).
Sample Loading:  Load pre-treated sample (1 mL) at a flow rate of 1 mL / minute using positive pressure (PRESSURE + 96 Positive Pressure Manifold, p/n PPM-96).  Note that plate conditioning and equilibration steps are not required.
Interference Wash 1: Water (1 mL)
Interference Wash 2: Methanol (1 mL)
Analyte Elution: Methanol/concentrated ammonium hydroxide (95:5, v/v, 1 mL)
Post Extraction: Evaporate extracts to dryness (SPE Dry Dual Sample Concentrator, p/n SD-9600-DHS) and reconstitute in 80/20 (v/v) mobile phase A/mobile phase B (500 µL).

Instrument: Agilent 1200 Liquid Handling System (Agilent Technologies, Berkshire, UK)
Column: Organic Acids 150mmx 4.6mm (5 µm) (Restek)
Mobile phase A: 1% (v/v) formic acid in water
Mobile phase B: Acetonitrile

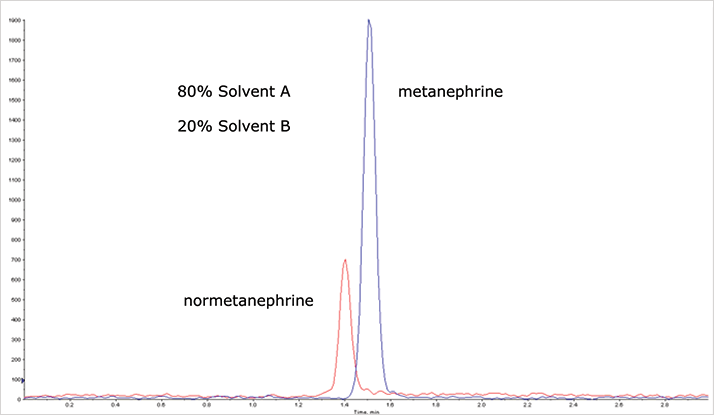

Fig 1: Extracted ion chromatogram for metanephrine and normetanephrineFig 1: Extracted ion chromatogram for metanephrine and normetanephrine (20 ng/mL fortified urine sample)

Instrument: Applied Biosystems/MDS Sciex 4000 Q-Trap triple quadrupole mass spectrometer (Applied Biosystems, Foster City, CA) equipped with a Turbo Ionspray interface.

Monitored transitions: metanephrine, 198>165; normetanephrine, 185>166

Figure 1 shows the extracted ion chromatogram for metanephrine and normetanephrine from a 20 ng/mL fortified synthetic urine sample. The method demonstrated high (>80 %), reproducible recoveries of both analytes, with excellent linearity (r2 >0.99) over the range 10-70 ng/mL.

The load-wash-elute procedure utilising EVOLUTE EXPRESS CX plates described in this application note proved fast, simple and effective for the extraction of the catecholamine metabolites, metanephrine and normetanephrine, from synthetic urine samples.  Elimination of the traditional conditioning and equilibration steps speeds up the sample preparation process, without compromising on analytical quality. Visit the literature database on biotage.com for more information.
